Data Acqusition Application
daqX-ldc
Laser Diode Control for Automotive
Laser Diode 전류 및 PWM 제어를 통한 CW / Pulse Mode 제어가 가능하며, 형광체 및 Lens등 다양한 Testing 조건을 사용자가 정의하여 Test가 가능한 Laser Diode Testing Unit.
  • System Dimension [W x D x H] : 240 x 200 x 200 mm
  • Weight : About 4 kg

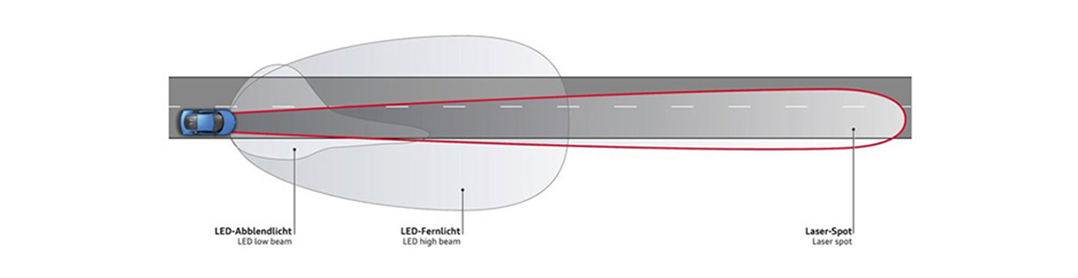

기존 상향등 대비 Laser Spot Light 조사거리 비교

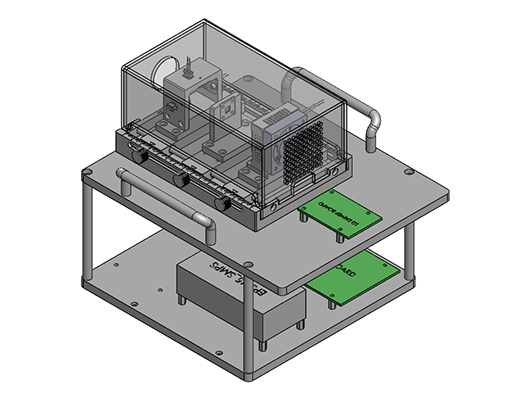

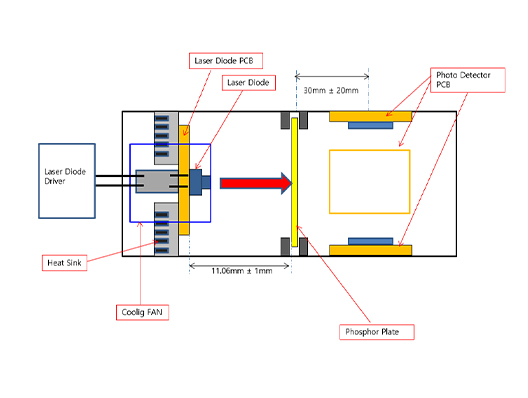

daqX-ldc Configuration

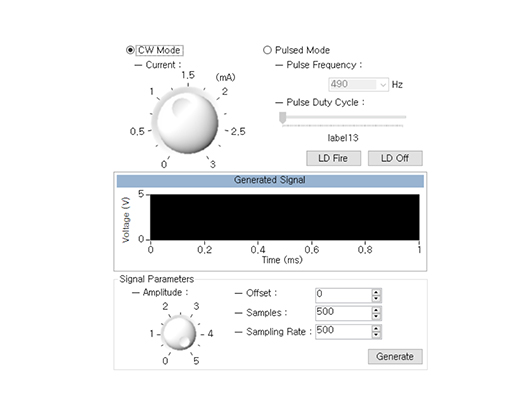

LD Serring
Laser Diode Excitation
Before
After
Data Acqusition Application
daqX-ccc
Constant Current Control for Automotive
Warm/Cool을 기준으로 개별 8 Channel의 단독제어가 가능하며, MCU를 기준으로 Left/Right Lamp 제어가 가능한 LED Driving Module로 구성.

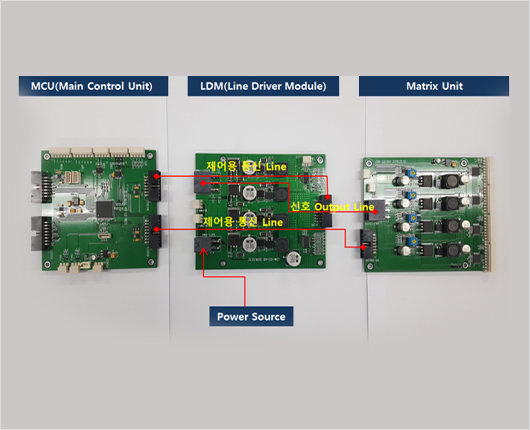

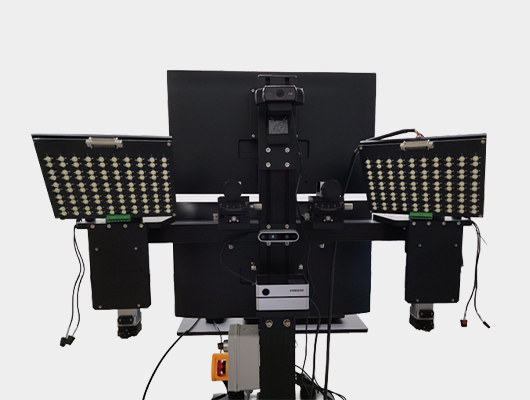

daqX-ccc

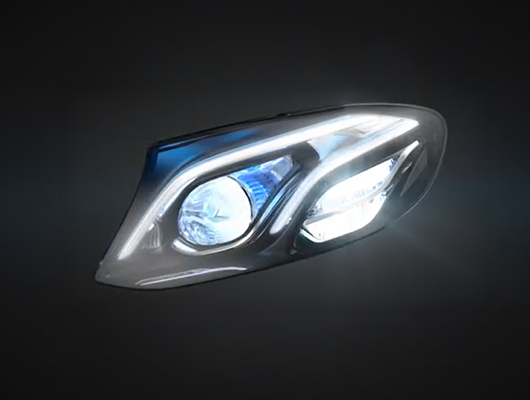

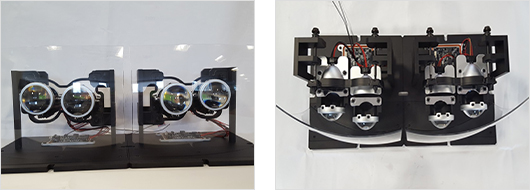

Head Lamp with daqX-ccc
사진 출처: Mercedes-Benz
Data Acqusition Application
daqX-ltt
Lane Tracking Tester for Automotive
AFLS(Adaptive Front Lighting System)구현 및 기 개발된 제품의 성능과 Aging Test를 목적으로 이에 필요한 Adaptive Cornering Lighting 용 Lane Tacking Software 가 탑재된 Testing System을 의미.

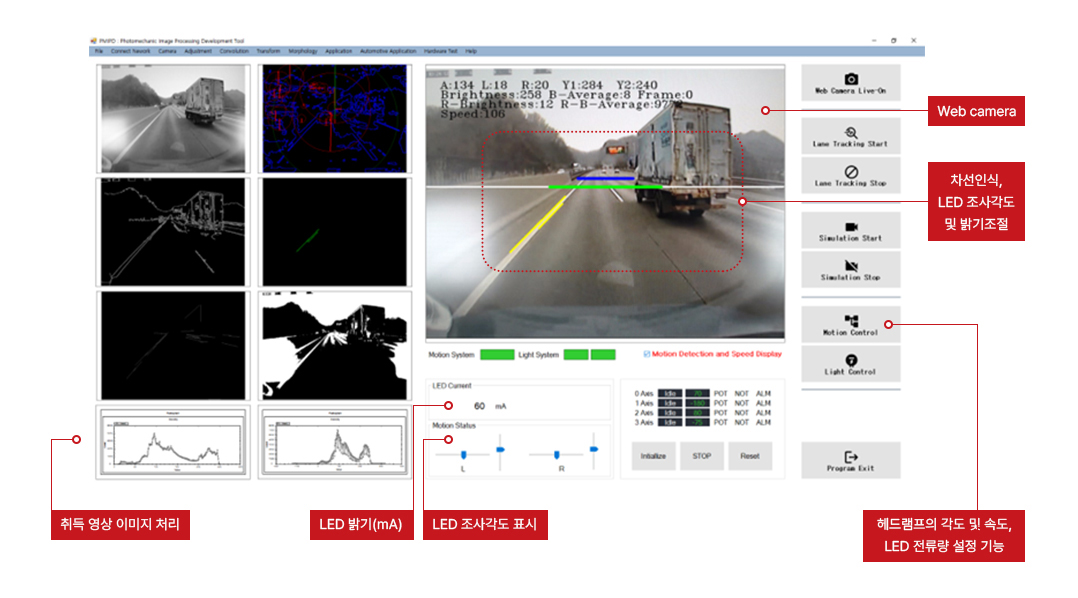

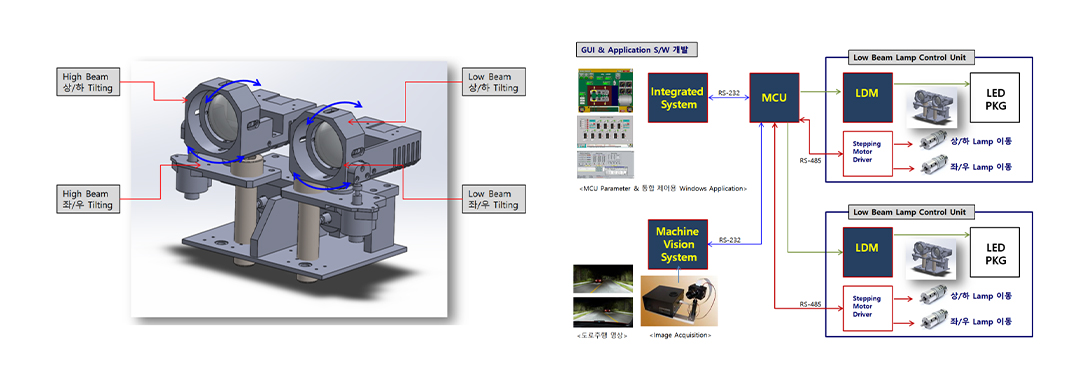

daqX-ltt Lane Tracking Software & Configuration
Data Acqusition Application
daqX-ams
Acceleration Measurement System for VC-Curve
  • Acceleration 정밀 측정 및 분석기능
  • VC-Curve 분석에 의한 진동범위 분석
  • 2-ch Input, 30 khz Sampling Rate
  • 사용자 편의기반 Graphic User Interface 제공

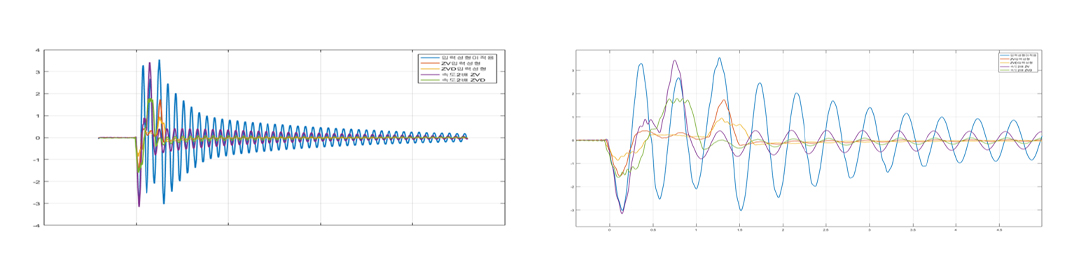

VC-Curve Generation

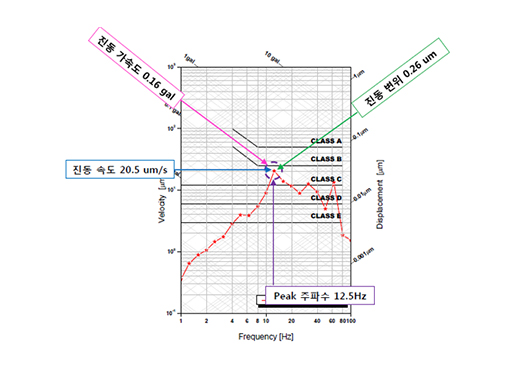

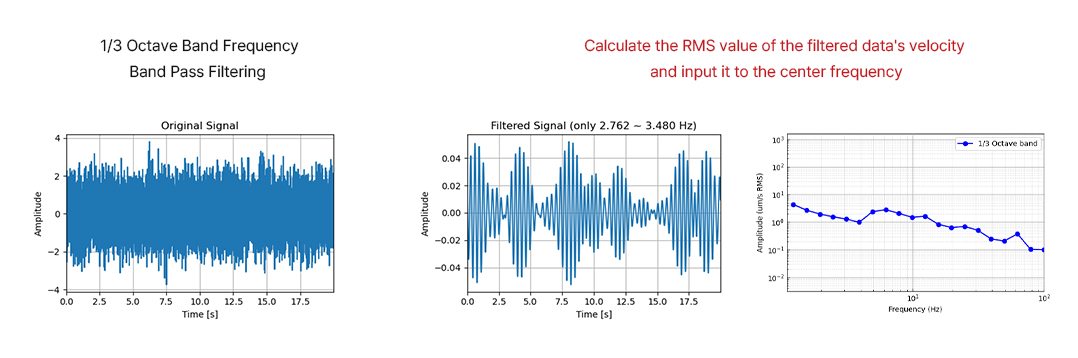

VC-Curve Analysis & Applicable Algorithm
