Data Acqusition Application
daqX-ldc
Laser Diode Control for Automotive
It is possible to control CW/Pulse Mode through Laser Diode current and PWM control. And it is a Laser Diode Testing Unit that allows users set to test various testing conditions such as phosphor and Lens.
- System Dimension [W x D x H] : 240 x 200 x 200 mm
- Weight : About 4 kg

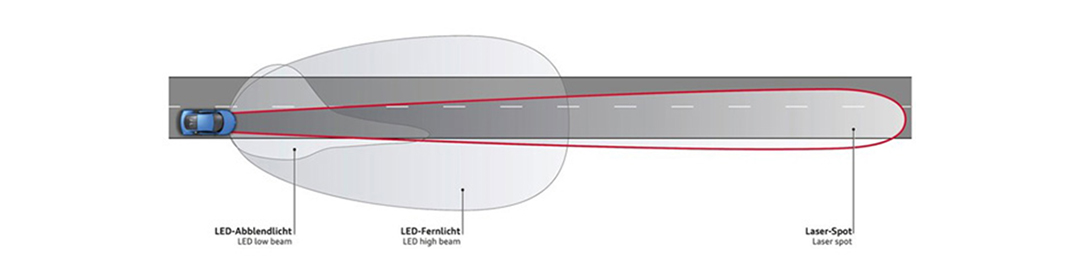

Comparison beam Distanc of Laser Spot Light to Traditional Up-lights

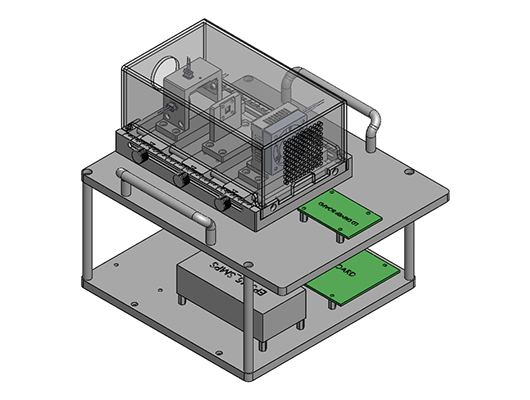

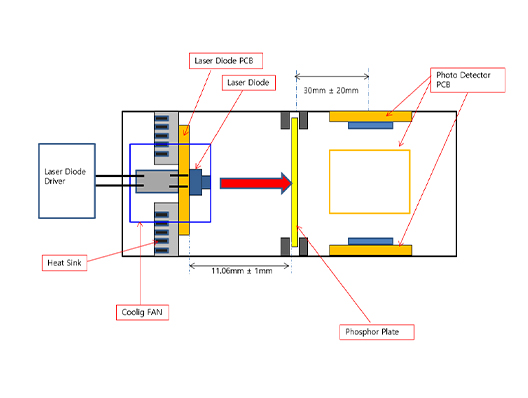

daqX-ldc Configuration

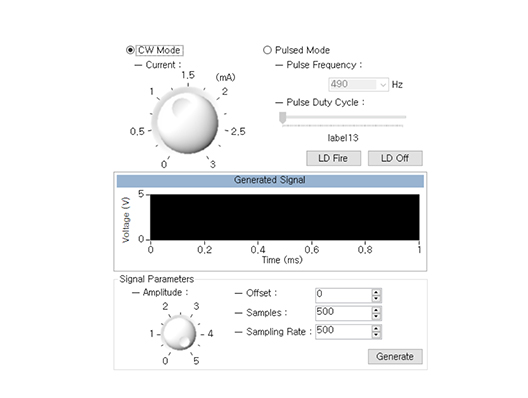

LD Serring
Laser Diode Excitation
Before

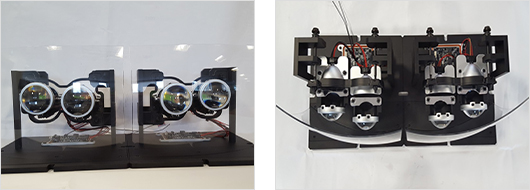

After
Data Acqusition Application
daqX-ccc
Constant Current Control for Automotive
It consists of an LED driving module that can control 8 channels independently based on Warm / Cool and can control Left / Right Lamp based on MCU

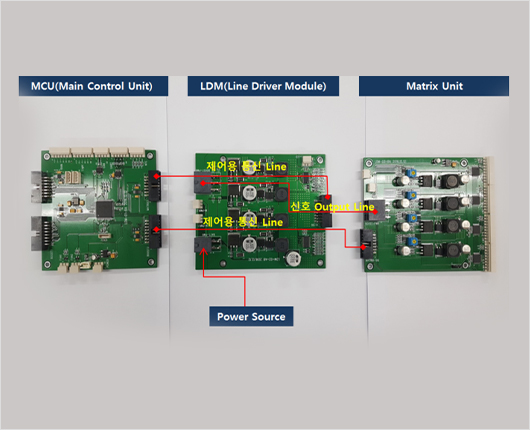

daqX-ccc

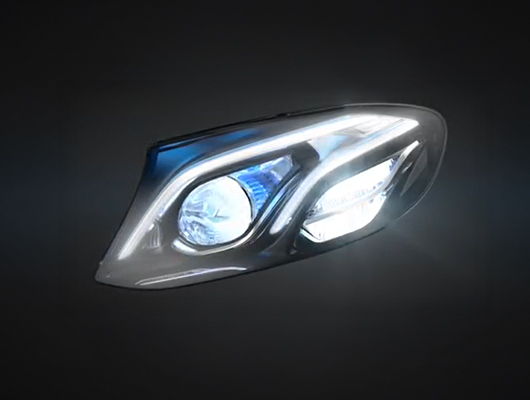

Head Lamp with daqX-ccc
Source: Mercedes-Benz
Data Acqusition Application
daqX-ltt
Lane Tracking Tester for Automotive
It refers to a testing system equipped with Lane Tracking Software that implements AFLS(Adaptive Front Lighting System) and applies it to Adaptive Cornering Lighting required for this purpose for the purpose of performance and aging testing of previously developed products.

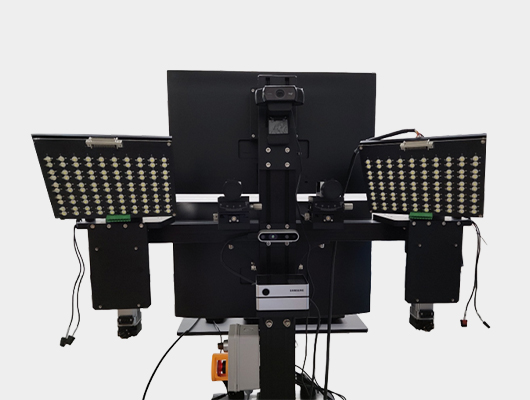

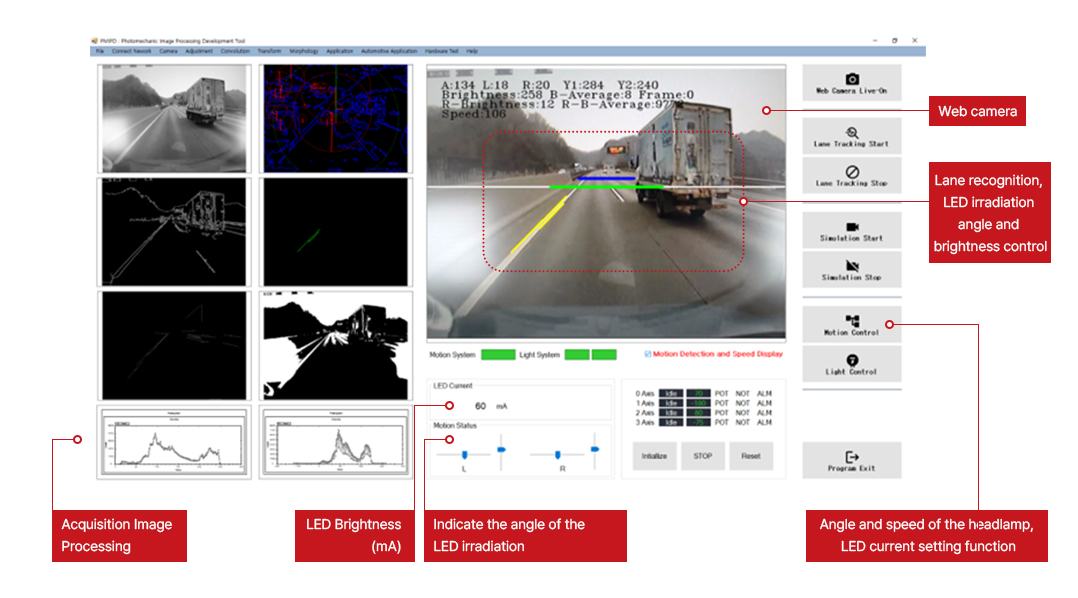

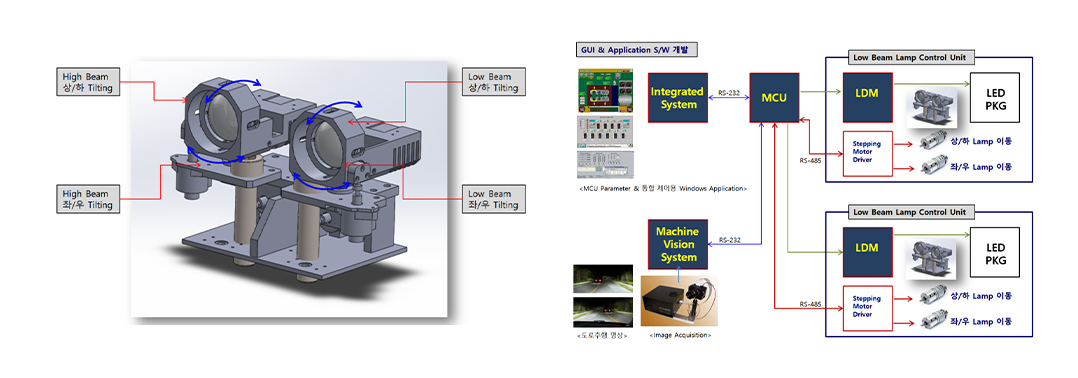

daqX-ltt Lane Tracking Software & Configuration
Data Acqusition Application

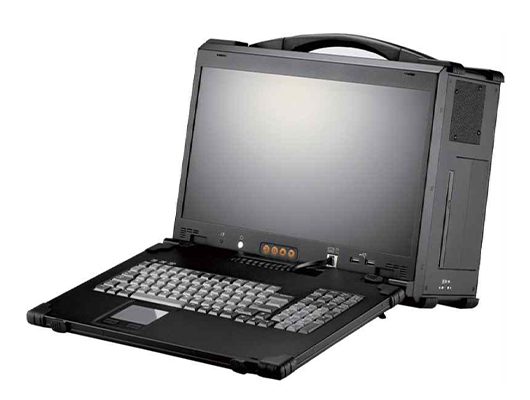

daqX-ams
Acceleration Measurement System for VC-Curve
- Acceleration Precision Measurement and Analysis Function
- Vibration Range Analysis by VC-Curve Analysis
- 2-ch Input, 30 khz Sampling Rate
- It provides a graphical user interface based on user convenience.

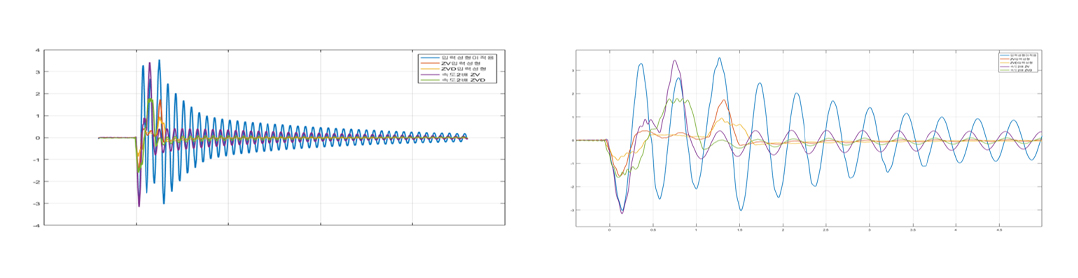

VC-Curve Generation

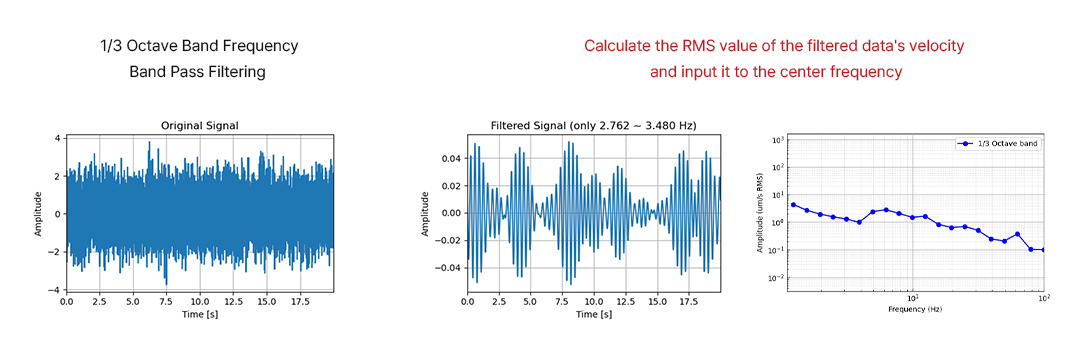

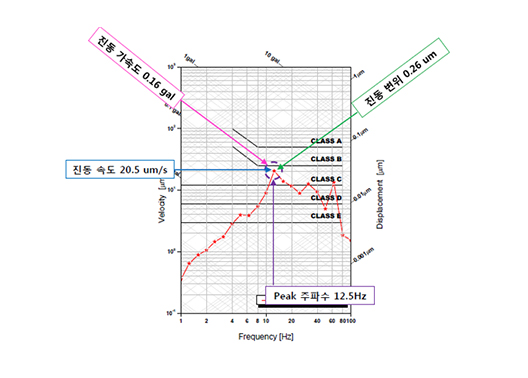

VC-Curve Analysis & Applicable Algorithm
